Smart Temperature Controller

Control Anything Anywhere

Powerful, Precise, Flexible, Programmable... SMART

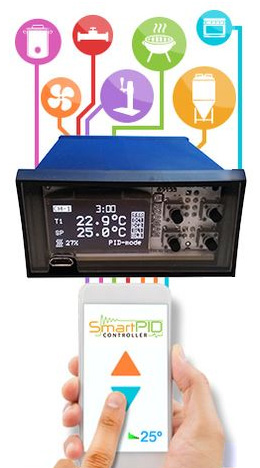

What is SmartPid?

  • SmartPID Controller is a professionally engineered Hi-tech product for temperature and process control having lots of functions and features, which are not present in other or normal 'Thermostats'
  • SmartPID Controller can control any thermo regulated process (heating or cooling) and any applications locally or remotely
  • It is flexible and very powerful device which can be programmed and adapted to any custom application
  • SmarPID is IoT ready and can be connected via WiFi to cloud services and remote controlled via MQTT standard protocol
  • SmartPID Controller is 100 compatible with Arduino ecosystem

What SmartPid can do?

  • Compared to simple on/off thermostat SmartPID controller can collect temperature from multiple sensors, apply a custom and programmable control logic and drive different load (heater, cooler, valve, fan…) with PID precision algorithm
  • You can easily replace your thermostat and add full process control to your application, data log and remote management
  • In one word make your temperature process control SMART
  • SmartPID Controller is a must device for Do-It- Yourself Enthusiasts. Software geeks, Makers, but also professionals that need affordable process controller
  • From homebrewing or wine making to aquarium or refolow oven temperature control SmartPID can add precision, power, flexibility programmability
  • Via smartphone or web application you can easily monitor your remote process and mange all configuration parameters

Available SmartPID Applications

Smart Thermostat

General purpose temperature controller application with all advanced and smart features for a variety of process

view details
Smart Homebrewing

Complete BIAB/RIMS brewing process automation and recipe management Fermentation temperature control

view details
Smart BBQ

Charcoal BBQ temperature control for pitmaster perfection

view details
Smart Food Dehydrator

Dry your food in a precise, controlled and healthy way

Common Smartpid Application Features

DUAL Independent control channels

SmartPID can control 2 differents channels with two temperature sensors and independent outputs (ie one heating process and one cooling process)

Multi control mode

Each SmartPID channel can be configured to control either a “cooling” or “heating” process or combined “thermostatic” process

PID or ON/OFF algorithm

Each SmartPID channel can support simple ON/OFF algorithm or advanced PID control logic with PWM output. Each process parameter is fully configurable

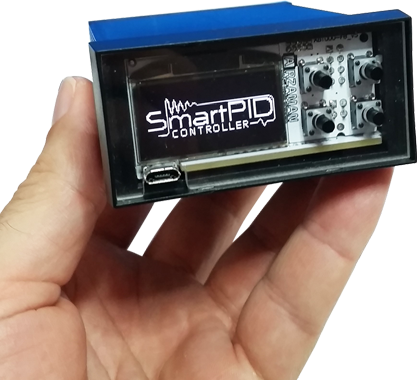

DIN compact all in one box

SmartPID has been carefully engineered to fit a very compact plastic box (DIN size 36X72B L 75) for panel mount. You can plug and play replace standard low cost thermostat (STC1000, Sestos etc..)

Analog Digital Temperature probe support

On each SmarPID channel is possible to connect either analog NTC sensor or digital DS18B20 one wire sensor

Multiple Outputs

The SmartPID controller has 5 differents control outputs for any load and device type 2 x Mechanical Relay 220V/10A1 x 12v SSR ouput 2 x 12V 2A direct load driving (pump, fan, valve)

OLED graphical display

A super brilliant OLED graphical display allow smartPID to report all the information about process control , data log, temperature graphic etc. Simple text menu navigation simplify configuration process..no more strange codes or 7 segment display

USB port

Front USB port is the key to make SmartPID a flexible and programmable device. Through USB you can Load new firmware application, export data log, configure your application via desktop dashboard

Internal 220V/110V AC power supply

SmartPID is powered directly by main power, no need of external adapter ! 2A internal power supply provide enough current for two 12V output to drive directly the load: no more cabling and external relay

Process data logging

This feature is what make SmartPID so smart..all process data are logged in internal 8mb flash memory and can be collected and analyzed offline via USB or pushed real time via wifi to a server.

WiFi connectivity and remote control

Wifi Internal module open SmartPID to the IoT world with possibility to push log and process data in the cloud or remote configuration and control

Arduino Compatible

SmartPID has been designed and engineered to be 100% arduino compatible. It is based on SAMD21 mcu (same as Arduino Zero and MKR1000) and benefits of the support of all the libraries, communities and code available. Plug your USB port to your PC and program the board via Arduino IDE

Stay Tuned !

Register our newsletter to get latest news on product development and commercial launch

Compare with Similar other Products

FEATURES


Control channel

Control mode

PID alghoritm

ON/OFF algorithm

PID autotune

NTC sensor

DS18B20 digital sensor

Thermocouple k-type

Sensor calibration

Accuracy

Resolution

Temperature range

250VAC/10A Relay Output

SSR Output (PWM)

12V 2A direct drive output

220v/110v AC power

Box measurement

OLED graphical display

USB port

PC/Web configuration

Data logging (USB / WiFi)

WiFi Connection

Remote management/configuration

Automation process control

Multiple application support

Arduino compatible

SmartPID SPC1000

2

Heating / Cooling / Thermostatic

2

2

2 (with adatper)

0.125C (DS18B20)

0.1C

-55C+125C (DS18B20)
-55C+1300C (k-type)

2

1

2

DIN  36x72x75

1,3"

8Mb

STC1000

1

thermostatic only

1

1C

0.1C

-50C+99C

2

DIN  36x72x75

7 segment

STC100+ hacking

Sestos D1S

1

Heating OR Cooling

1 (*)

0.2%

0.1C

0-130C (NTC)

1

D1S-VR only

DIN 48x48

7 segment

Inkbird ITC-308

1

thermostatic only

1

1C

0.1C

-50C+99C

2

140x68x33mm

7 segment

ITC-310T (**)


(*) K,S,Wre,T,E,J,B,N,C,U50,PT100
(**)6 temperatures in 6 periods of time

Technical Specifications
